Product Information
Water-ink Printing Machine can print different colors and images on paper products. Each printing group is equipped with an infrared dryer to dry the ink quickly. Equipped with 6 lamps, controlled by independent switch. The machine is equipped with a hot-air blower to ensure the drying quality. The machine also has a winding device, which is driven by a motor to ensure the rewinding tension and stable operation. The product is highly efficient, so it can be printed in large quantities, thus greatly shortening the project schedule.
Features
1.Water-ink Printing Machine has the advantages of high reliability, high security and simple operation.
2.This machine not only improves labor efficiency and reduces labor intensity, but also saves energy and reduces consumption.
3.The main motor adopts frequency conversion control to ensure the continuous and stable operation of the machine.
4.All rollers of the machine are chrome plated, which can enhance the strength, make the machine precise and durable, and have a long service life.
Specification
NO. | Model | 850 |
1 | Max Unwinding Diameter | 1400mm |
2 | Max Rewinding Diameter | 1400mm |
3 | Printing Circumference | 254--508mm |
4 | Max Web Width | 860 |
5 | Max Printing Width | /850 |
6 | Power supply | 380V 3PH 50HZ |
7 | Printing Speed | 5-100m/min |
8 | Plate thickness | 1.7mm |
9 | Tape thickness | 0.38mm |
10 | Thickness of paper | 40-400g |
11 | Printing precision | ±0.12mm |
12 | Weight | About4800 |
13 | Printing Gear | 1/8cp |
14 | Drying | Infrared Dryer with 6pcs lamp |
15 | Rewinding | Surface rewinding with big roller |
16 | The highest temperature of heating dryer | 90℃ |
17 | Main motor | 7.5KW |
18 | Total power | 37KW |
19 | Dimension | 5.2*1.85*3.1m |
Main Technical Parameters Configuration
Name | Supplier |
Unwinding Tension | CHUYIN TECH |
Rewinding Tension Converter | Inovance |
Main motor converter | Schneider |
Main Motor | Shanghai 7.5KW |
Rewinding Motor | Shanghai 4KW |
EPC | Kcon |
Switch Power | Made in TaiWan |
Intermediate Relay | Schneider |
Breaker | Schneider |
Contactor | Schneider |
Control Button | Schneider |
Anilox roller | Made in Shanghai |
Company description:
In order to meet the needs of customers, Feida Machinery Co.,Ltd always perfects the varieties and improves the quality. There are two series of products, Full Automatic Roll Flatbed Die Cutting Printing Machine and Full Automatic Stripping Machine, which reach the domestic advanced level. Feida Company has passed the certification of CE and the certification of Import and export permit. Our products are welcomed not only by domestic customers but also exported to USA, Greece, South and North America, Mid-est, Southeast Asia and many other countries and regions.
 | ||

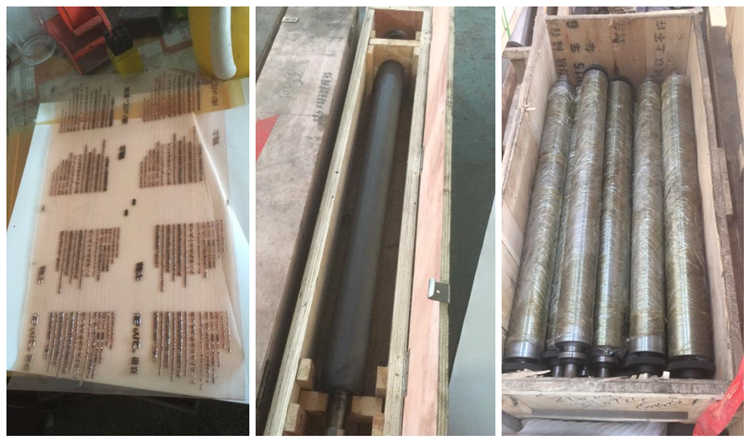

| Cliche/Printing plate | Ceramic anilox roller | Printing cylinder |
Why Water-ink Printing is better?
Nowadays, many printing professionals have turned to water-based inks to screen print textiles. Why Water-ink Printing is so popular? What are the advantages of Water-ink Printing? Why water-based ink is better? Here are five reasons：
1. Eco-friendly ink printing
Plastisol inks are based on PVC resin and phthalate plasticizers. They are usually cleaned by petrochemical solvents. In contrast, water-based ink printings are completely free of PVC and phthalates, ozone-depleting chemicals and aromatics. Water-ink printing is very Eco-friendly!
2. Water-ink printing product feels more soft
Unlike thermosetting inks, water-ink printing products are softer. Water-based ink technology can ensure good adhesion, allowing the print to adhere gently to the fibers and the fabric can maintain its natural softness. Water-ink printing products give your prints unparalleled softness and flexibility. Clothing and household items printed with water-based inks bing to the wearer more comfortable and safer feeling.
3. High quality printing
Water-ink printing prints produce longer-lasting prints with impeccable detail and sharper edges.
4. Better for your health
Because water-ink does not contain harmful chemicals, water-ink printing is safe not only for the environment but also for operators and print users.
5.Easier to clean up
Water-ink printings can be easily cleaned with water after printing. There are no harmful chemicals in water-ink printings
6. More business
Regulations in many jurisdictions have banned or strictly restricted the use of phthalates in baby clothing. Therefore, if you want to provide baby clothing prints, you must use water-based inks.This means that using water-ink to print will make you have more chance for your bussiness.
Using water-ink printings, the printing quality is outstanding, and most importantly, and it is eco-friendly. Using water-based ink and water-ink printing machine has never been easier or more advantageous. If you haven't use water-ink priting so yet, you must convert to a water-ink priting machine to restart your printing bussiness as soon as possible.
We are a professional Water-ink Printing Machine manufacturers in China. We can provide the best Water-ink Printing Machine for sales and competitive price. If you are looking for Water-ink Printing Machine suppliers, we are a good choice. Although Water-ink Printing Machine is in stock we can offer you the service of customized Water-ink Printing Machine. Contact us to get the price of Water-ink Printing Machine
