Plastic Film Printing Machine

Plastic Film Printing Machine

plastic film printing machine equipped with 3 inches air shaft. The maximum diameter is 1500mm. -The mandrel support structure is fixed on the base to realize the positioning of the material roll Hydraulic up and down
Send Inquiry
Description

Product Information

The printing height of Plastic Film Printing Machine can be adjusted according to the printing object. The horizontal and vertical spray structure enables various raw materials to be well printed on the articles. Automatic feeding time can be set at will to realize continuous production. The machine can also be used for batch production. Without complicated computer operation steps, even beginners can quickly learn how to operate. The machine is not affected by the material of the object, and can use rich colors to print on the surface of various materials, such as metal, plastic, stone, leather, wood, glass, crystal, acrylic, coated paper.

Features

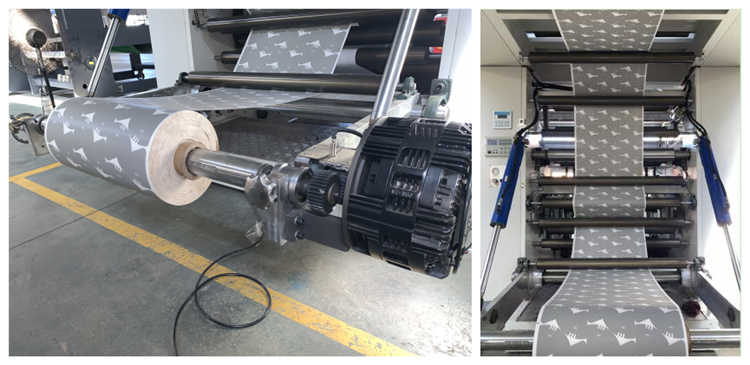

1.The machine is equipped with a 3-inch air shaft, which is supported and fixed on the base to realize the positioning of the material roll.
2.The tension controller can display the unwinding tension in real time to ensure the stability of tension.
3.This machine is equipped with an automatic paper guide system, which can correct the slight deviation of the paper screen accurately.

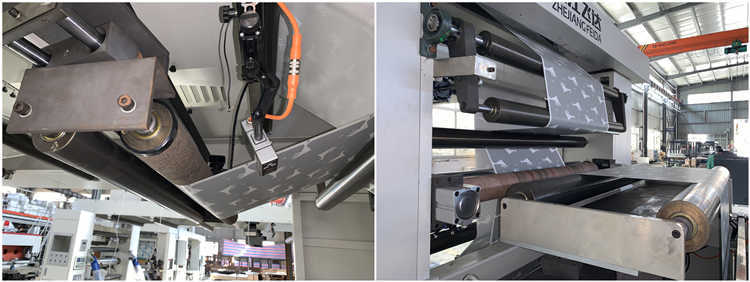

4.Plastic Film Printing Machine also has a correction sensor for inductive correction signal transmission.


Main Parameter

Items

describe

Maximum paper width

1300mm

Maximum printing width

1280mm

Printing repeat

500-1200mm

Maximum unwinding dia

1500mm

Maximum rewinding dia

1500mm

Unwinding type

Air shaft

Rewinding type

Surface tension

Gear format

3.175mm per tooth

The speed

150-200m/min

The thickness of plate

1.7mm

The thickness of tape

0.38mm

Suitable materials

Paper cup, paper box etc

The color of machine

Grey and white

Operation language

Chinese

Air comsuption

6KG, 0.6L/Min clear,dry,no water/oil AIR

Voltage required

380 VAC +/-10% 3PH 50HZ

Dry type

Electric heating,Heating power27KW

Total power

48kw

Dimension

7600*2700*4800mm



45


47
