Product Information
The stacked flexo printing machine can achieve the effect of double-sided printing, and can also carry out monochrome or multi color printing. It can be printed with various materials of paper, even in the form of roll or self-adhesive paper. The flexographic printing machine can also carry out a variety of operations and maintenance, such as processing, die-cutting and glazing operations. Therefore, it can be seen that its apparent performance is extremely strong, and the measured tension is also very unique. The operation process is very simple which save operators lots of time.
Features
The stacked flexo printing machine can facilitate the installation of auxiliary machinery and equipment, and can carry out auxiliary collaborative production and processing after printing for polishing, film cutting, etc. It is convenient for actual operation and maintenance, has excellent performance indicators, and can accurately measure the support force with a dyne pen. This machine has a high degree of standardization of high-speed mixed color printing parts, integration of components, commodity generalization, and innovation in design scheme.
A. Details

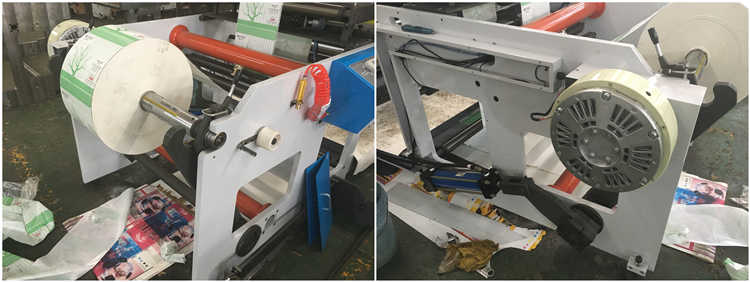

1.Unwinding unit and rewinding unit
• Automatic loading and unloading by hydraulic
• Magnetic powder as brake, motor as clutch
2.Auto web guiding
• Splicing table
• Detection mode: edge checking
• Precision: ±0.1mm
3.Feeding system
• Rubber rollers for feeding
4.Printing unit 4 units
• Helical gear
• Ceramic anilox roller: one set (4 pcs)
• Printing cylinder: one set (4 pcs)
• Ceramic anilox roller: LPI depends on buyer
• Printing cylinder: repeat depends on buyer
• Single side doctor blade
• Ink case
• Gear：cp1/8
5.Drying system
• IR
6.uto stopping function
7.Meter counter
8.Simple plate mounter
B. Technical parameter
1 Max unwinding diameter: 1200mm
2 Printing repeat: 250mm-580mm (79T – 182T)
3 Max width: 950mm
4 Max printing width: 950mm
5 Power supply: 380V 3PH 50Hz
6 Total power: 30KW
7 Machine speed: 0-80m/min
8 Printing plate thickness: 1.7mm
9 Double glue tap thickness:0.38mm
10 Printing precision: ±0.15mm
11 Air shaft diameter: 3inches
C. Configuration
| Ceramic anilox roller | 1 set: 4 pcs, lines from 200-1000 choose by buyer | Murata, Shanghai |
Printing roller | 1 set: 4 pcs | |
Unwinding tension controller | ZXTEC, Ruian | |
Magnetic powder brake | Chinese brand | |
Motor as clutch on rewinder | Lichao, Shanghai | |
Rewinding converter | Zhengxian, Shenzhen | |
Temperature controller | XMTG-6501 | Yuyao , Zhejiang |
Main motor | Lichao, Shanghai | |
Main motor Converter | YASKAWA, Japan | |
Button | Schneider , France | |
All low-tension electrical | CHINT , WENZHOU | |
Web guiding | 1 | ZXTEC, Rui’an |
Unwinding part with 20kg magnetic powder brake
Automatic tension control system on unwinding and rewinding part

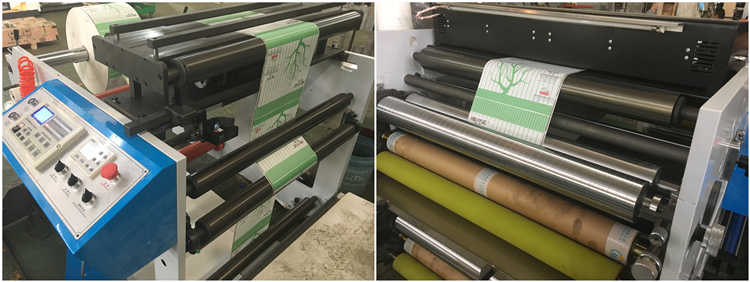

Auto web guiding system with splicing table, Printing part with ink roller, ceramic anilox roller, printing roller, and support roller

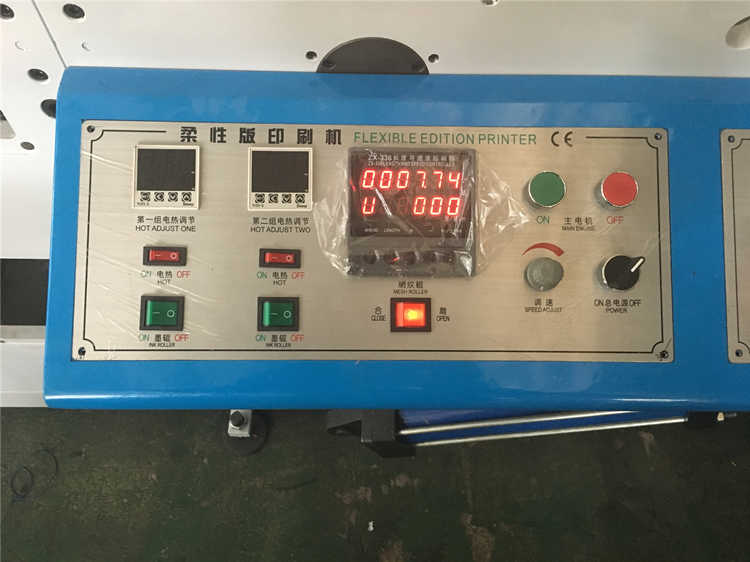

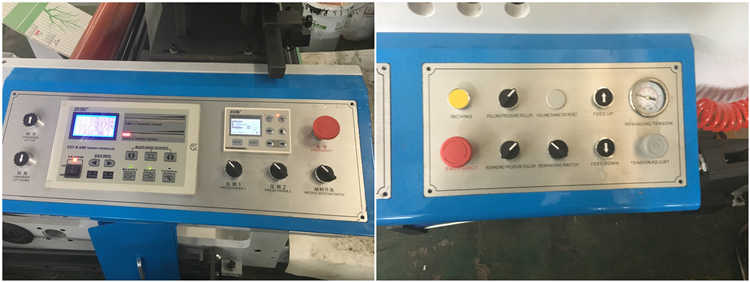

Main control panel with temperature controller, length counter and speed controller

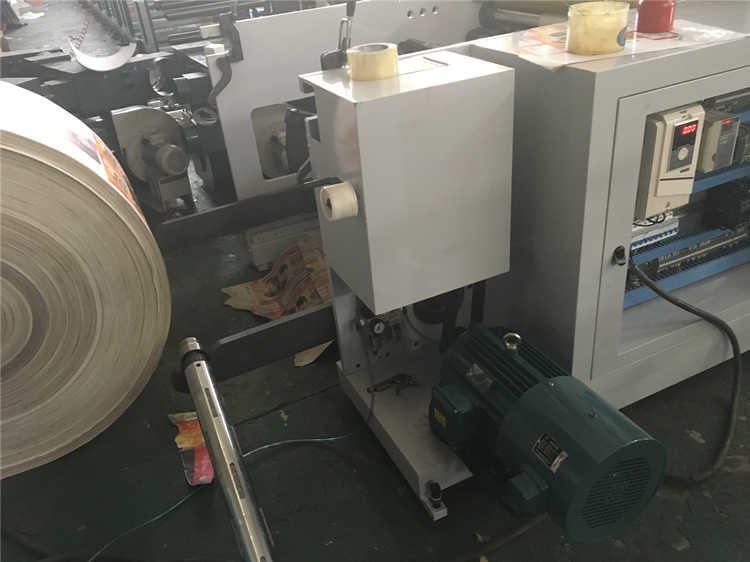

Rewinding part with separate motor 7.5kw and separate inverter as clutch

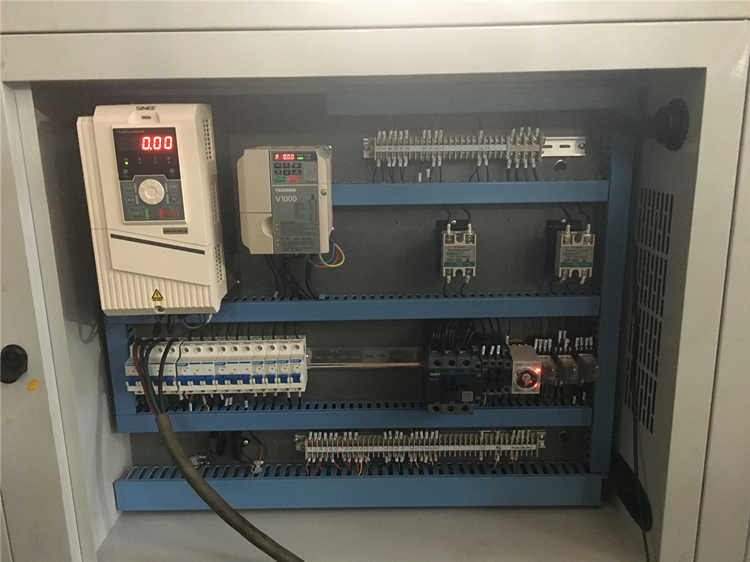

Electic part:

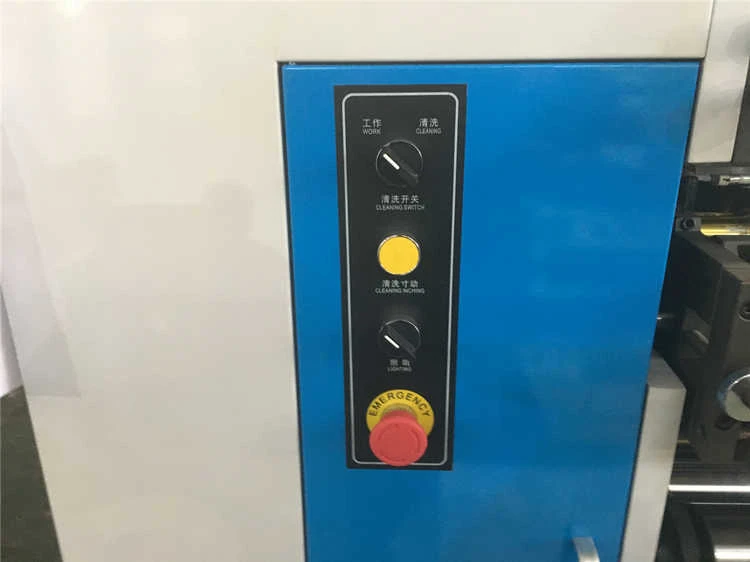

Washing mode after job is finished

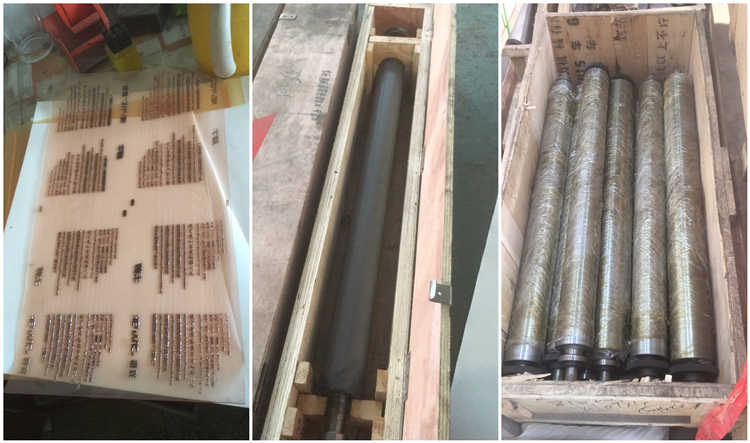

Cliche/Printing plateCeramic anilox rollerPrinting cylinder
The Advantages of Flexo Printing Machine
Stacked flexo printing is a commercial process in which flexible raised surface plates are used to create prints on a variety of materials. In addition to labels, stacked flexo printing is also possible on labels, metal films, plastics, and fabrics. Among diversified label solutions, we use stacked flexo printing processes to create custom and stock labels for our customers.
Flexographic printing is a commercial process in which flexible raised surface plates are used to create prints on a variety of materials. In addition to labels, flexographic printing is also possible on labels, metal films, plastics, and fabrics. Among diversified label solutions, we use stacked flexo printing processes to create custom and stock labels for our customers. Stacked flexo printing has many advantages.
Superior performance
Mainly, its versatility enables manufacturers to create vibrant labels on a variety of materials. Here are some other reasons why flexo printing is the preferred printing method for most label orders
Different sizes – This means that large format labels can be used, or to save time, many label streams can be printed at the same time.
Wide selection of substrates – anything from metallic film and aluminum foil to acetate and paper can be printed with flexographic presses.
Multifunctional inks – flexographic presses can use a wide range of inks, including water-based, fluorescent, metallic and UV-curable inks.
A cost-effective option for large operations
Using flexographic presses means high throughput and speed. This results in extremely cost-effective production.
High Speed – Once set up, flexo labels will be printed at high speed. This is achieved through the use of fast-drying, low-viscosity inks, precision molds and highly automated equipment.
Low ink cost – inks used in flexographic presses are affordable and more environmentally friendly. Flexo inks economically provide vibrant colors.
Inline finishing – In addition to topcoats and lamination, turret rewinders, paper and folding machines are added to the finishing station at the end of the press to keep production continuous.
Zhejiang Feida Machinery Co.,Ltd occupies a very important position in China Stacked Flexo Printing Machine market. We're professional Stacked Flexo Printing Machine manufacturers and suppliers, specialized in providing high quality Die Cutting Machines with competitive price. If you are looking for Stacked Flexo Printing Machine factories, please feel free to contact us, we can provide professional a Stacked Flexo Printing Machine solutions.Although Stacked Flexo Printing Machine is in stock we can offer you the service of customized Stacked Flexo Printing Machine.We warmly welcome you to buy Stacked Flexo Printing Machine for sales here from our factory.
