Introduction

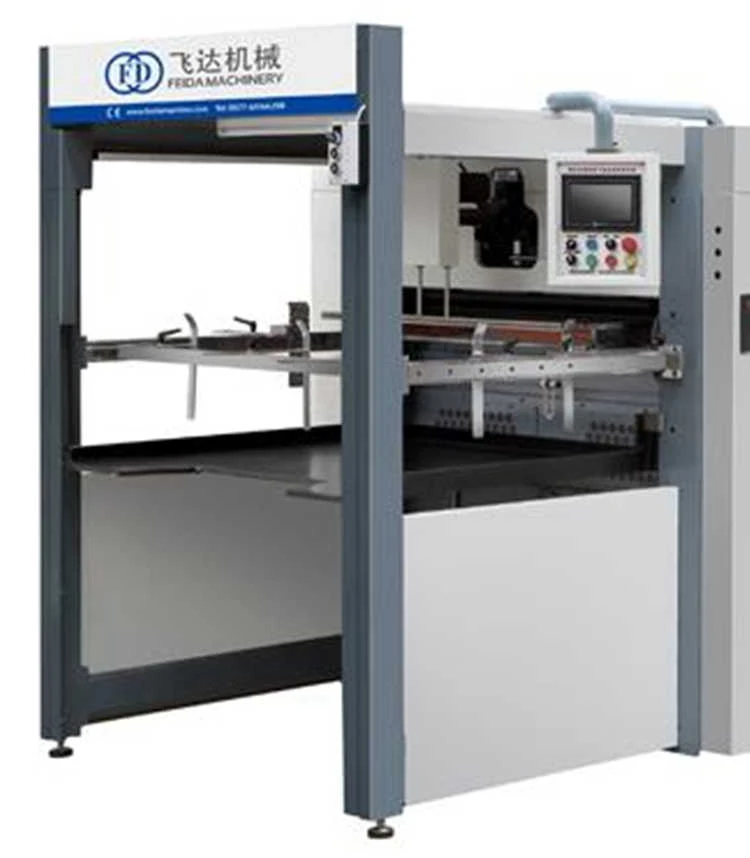

The Paper Plate Die Cutting Machine is a machine specially used for food packaging. For example, food trays or cake trays are not ordinary paper. They not only have different shapes but also have many sizes, so automatic production is very effective. Our machines can make different shapes and patterns according to customers' requirements. After the qualified materials are cut out, they can be subsequently made into three-dimensional packaging. Our die-cutting machine is very popular because it can not only help manufacturers reduce costs, but also has a wide range of applications. In addition, this product is an excellent choice for customers to make high-quality paper plates.
Features
1. Paper Plate Die Cutting Machine can fix the paper in the correct position according to the programming control system and carry out fine cutting, with an accuracy of ± 0.15mm.

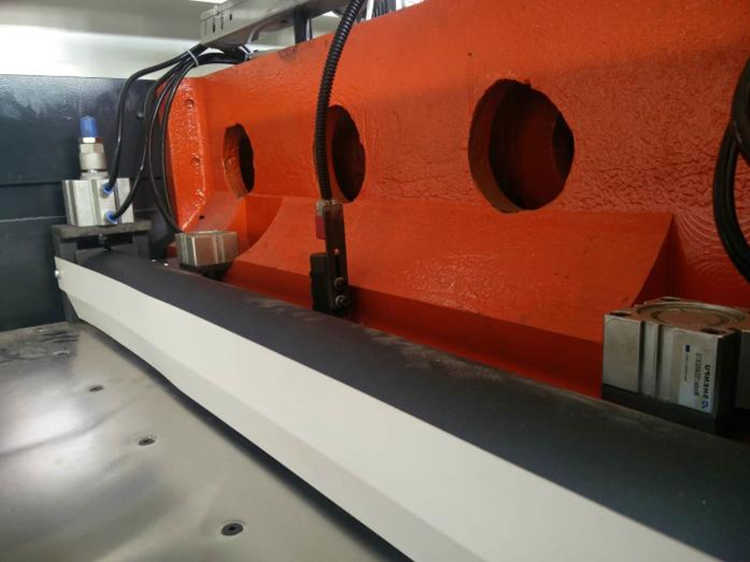

2. The pneumatic locking device can prevent the material from falling off the machine.
3. This product has a variety of safety protection devices. If problems such as paper blocking occur, the machine will give an alarm and stop feeding paper.
4. The die-cutting plate is made of 65Mn steel plate by heating treatment, so the hardness and flatness are high, and the finished product effect is also better.
5. The die-cutting cutter plate and plate frame can be taken out, so the maintenance is more convenient and the plate replacement time can be saved.
Technical Specification
| Model | FD970x640 |
Max cutting area | 940mmx600mm |
Cutting precision | ±0.15mm |
Paper gram weight | 120-600g/㎡ |
Production capacity | 160-200times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m³/min |
Max cutting pressure | 300T |
Weight | 9T |
Max roller diameter | 1600mm |
Total power | 12KW |
Dimension | 6500x2200x1800 |

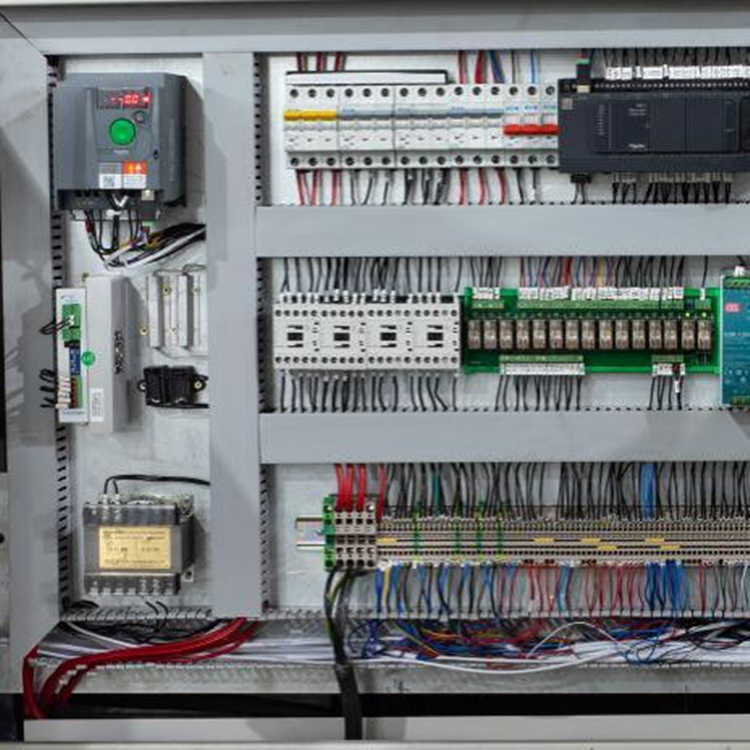

Electric Configuration
| Stepper motor | Schneider |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider |
Color Sensor | Sick |
PLC | Schneider |
Frequency converter | Schneider |
All other electrical parts | Schneider |

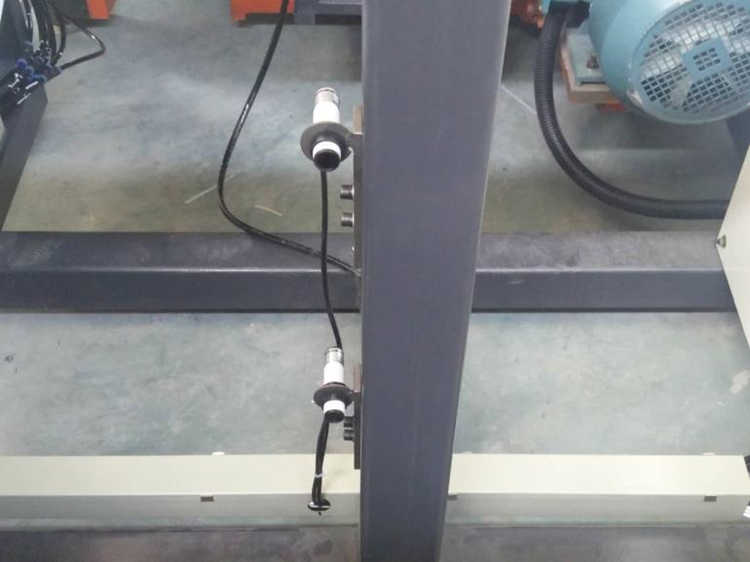

Photoelectric switch | Leuze |
Main air cylinder | AirTAC |
Solenoid valve and other parts | AirTAC |

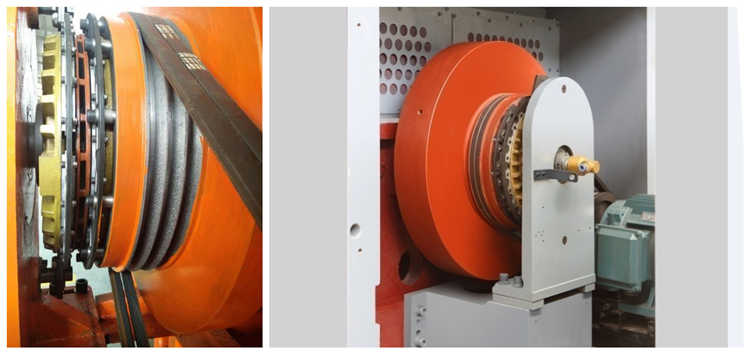

Pneumatic clutch | China |
Main bearings | Germany |
Advantages
Paper Plate Die Cutting Machines can complete industrial cardboard cutting. It can save materials and complete mass production in a short time. Even the cutting of complex shapes can be easily completed. With it, you can complete the production of various creative shapes and become a high-quality packaging provider.
