This paper box wooden die cutting machine is driven by a motor to run fast and stably. The blade part is made of high-quality wood, so it can cut materials smoothly and quickly, and the cutting surface is very smooth. Most importantly, a blade can cut nearly 50 tons of paper. In addition to high efficiency, its service life is also very long, which can help you save a lot of the cost of replacing tools. The whole machine has the advantages of simple structure and easy maintenance, and the important parts are from top suppliers, so its stability and durability are excellent. We have been specialized in the manufacture of die-cutting machines for many years. If you have any needs, please call us for consultation.
Features

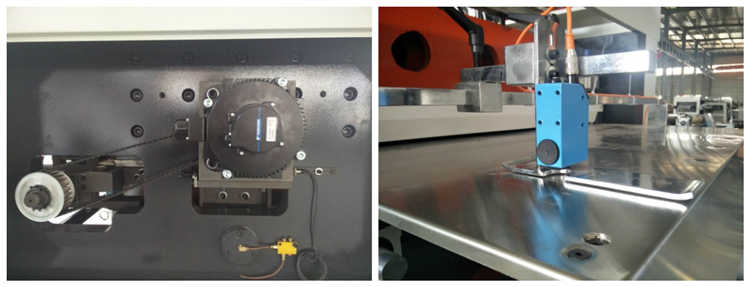

This paper box wooden die cutting machine can carry out die-cutting according to the drawings in the computer. The perfect match between the stepper motor and the photo-eye can accurately identify the color, position and shape, and ensure that the products that can be cut are consistent with the drawings. Relevant parameters, such as specific length, speed and quantity, can be set on the microcomputer controller. This machine uses frequency converter to control the main motor, so it has low energy consumption and high efficiency, and is a perfect solution to reduce costs.
Technical Parameter
Model | FD-1080X640 |
Max cutting area | 1050mmx6000mm |
Cutting precision | ±0.15mm |
Paper gram weight | 120-600g/㎡ |
Production capacity | 160-200times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m³/min |
Max cutting pressure | 300T |
Weight | 8T |
Max roller diameter | 1600mm |
Total power | 12KW |
Dimension mm | 4500x2500x1800 |
Feida is creating a prosperous future, with the strict management, self-discipline and united spirit and unique corporate team.
As always, Feida will do our best.

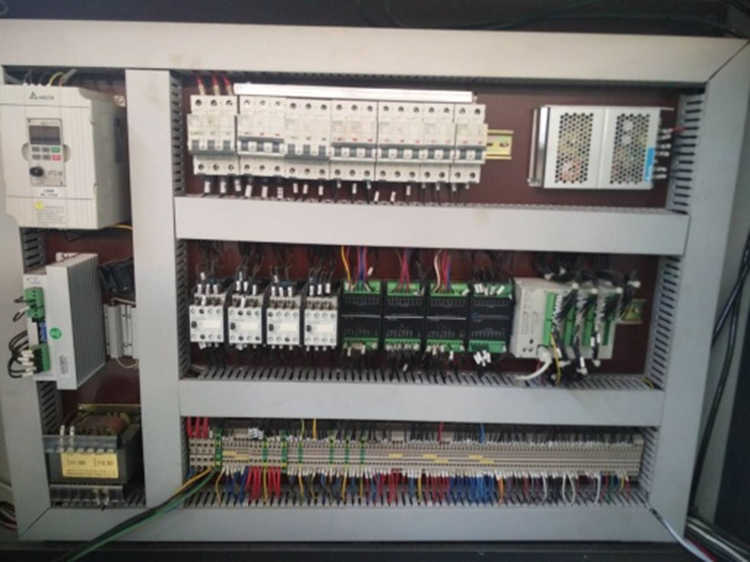

Electrical configuration
Stepper motor | Schneider |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider |
Color Sensor | Sick |
PLC | Schneider |
Frequency converter | Schneider |
All other electrical parts | Schneider |
Photoelectric switch | Leuze |
Main air cylinder | AirTAC |
Solenoid valve and other parts | AirTAC |
Pneumatic clutch | China |
Main bearings | Germany |
There are three ways to die cut corrugated boxes:
1. Flat flattening die-cutting
2. Round flattening
3. Round pressed round
