Introduction

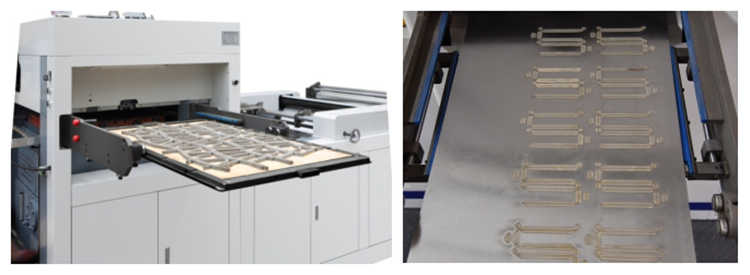

Indentation Line Cutting Machine can be used for the production of product packaging such as cartons, snack boxes, and milk boxes because it can cut all kinds of paper products and also make indentation lines of paper. It adopts a forced lubrication system to ensure the regular supply of main drive oil, thus reducing friction and extending the service life of the machine. At the same time, the product can automatically peel off the waste paper, greatly improving production efficiency. The finished product will be lowered automatically by the action of the solid induction switch, so there is no need to take paper manually during the whole die-cutting process. This product is the preferred choice for suppliers who want to increase production and reduce costs.
Features
1. The Indentation Line Cutting Machine can achieve accurate cutting while running at high speed, and it will not produce large noise at the same time. It is very friendly to the operating environment.
2. Our products are equipped with filters, so the quality of lubricating oil can be controlled.
3. The safety system can give an alarm and stop the operation of the machine when the raw material is exhausted, and can also shut down the machine when the machine is overloaded to improve safety.
4. The operator can accurately control the die-cutting position and product size through the photoelectric system and computer control system.
Technical Specification
Model | FD-1200X640 |
Max cutting area | 1170mmx600mm |
Cutting precision | ±0.15mm |
Paper gram weight | 120-600g/㎡ |
Production capacity | 160-200times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m³/min |
Max cutting pressure | 300T |
Weight | 11T |
Max roller diameter | 1600mm |
Total power | 12KW |
Dimension | 6500x2800x2000 |
Remarks:
1.Price Term: FOB ningbo/shanghai port,China
2)Payment term: TT (30% deposit, the balance70% before delivery) .
3) Delivery time: 90 working days after receiving the deposit
4) After sale service:
1.Spare parts guarantee for one year from the date of installation.
2.Send the technician for installation & training. Buyer bears the cost (round tickets,accommodation, and allowance of 100USD per day).
5)Certificate：CE,ISO

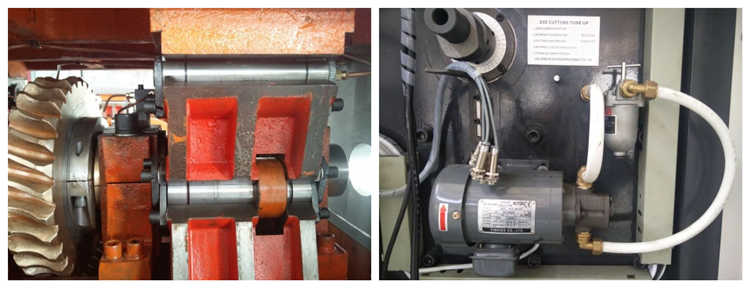

Lubri catione
Paper blocked alarm: the alarm system makes the machine stop when paper feeding blocked.

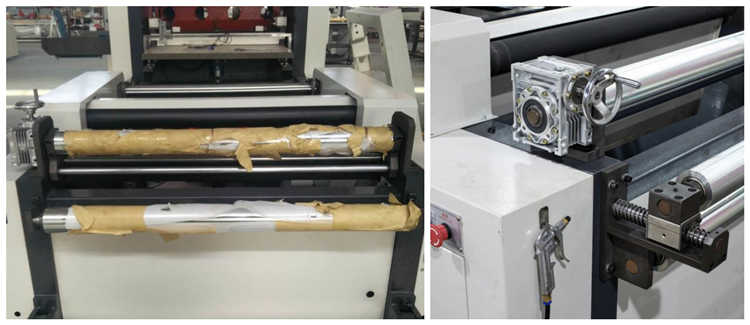

Feeding Unit: Feeding Unit: Adopts pneumatic and hydraumatic shaftless, it could support 3’’, 6’’, 12’’. Max roll paper diameter 1.6m.

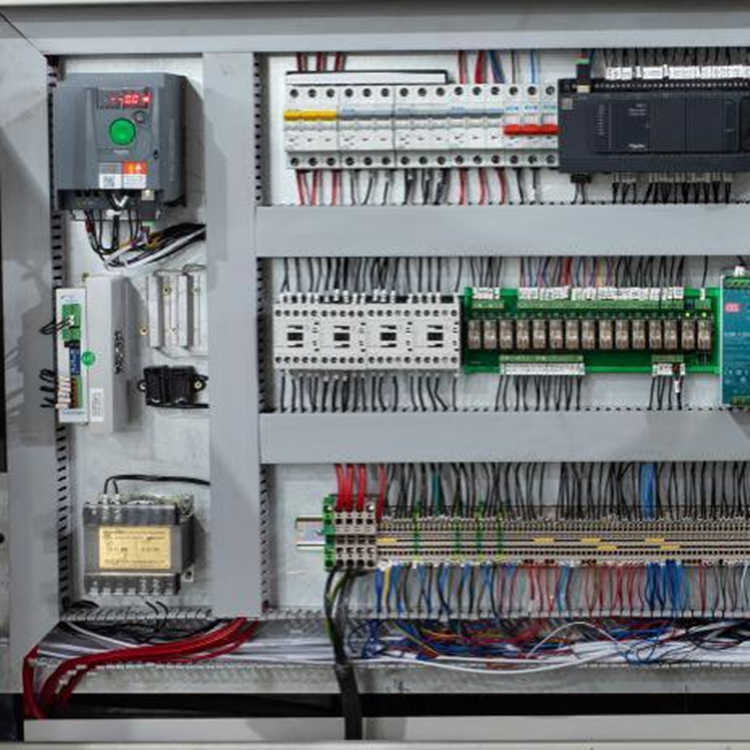

Electric Configuration
| Stepper motor | Schneider |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider |
Color Sensor | Sick |
PLC | Schneider |
Frequency converter | Schneider |
All other electrical parts | Schneider |

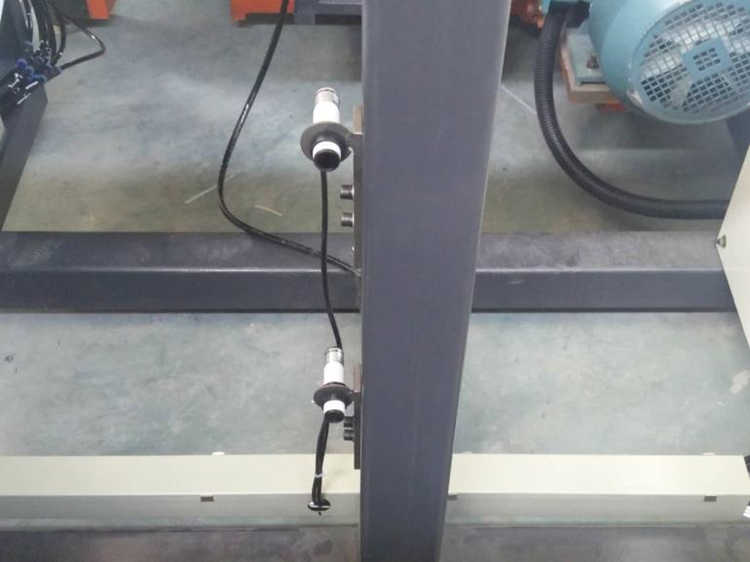

Photoelectric switch | Leuze |
Main air cylinder | AirTAC |
Solenoid valve and other parts | AirTAC |
Pneumatic clutch | China |
Main bearings | Germany |
Safety Operating Procedures
1. The workshop equipment layout using the Indentation Line Cutting Machine should be reasonable, the road ground should be flat, and the passage should be unblocked.
2. The installation direction should be conducive to safe operation, with the operator facing the wall, and the minimum net distance from the surrounding buildings and facilities should not be less than 0.8m.
3. The location of the machine should meet the site conditions for vertical lifting and maintenance operations.
4. The metal shell of the motor and electrical control box of the machine must have good zero or grounding protection.
5. Wires exposed must be protected by a protective sleeve, and wires with different voltages should use their own sleeves.
6. The user unit establishes a safety technical file for the machine and records the safety production situation.
7. Operators should conduct safety education and professional technical training.
8. It is strictly forbidden to operate workers in consecutive shifts, and there should be no less than 2 people when it is necessary to add points to a single machine.
9. Operators must wear tight-sleeved overalls and use special rubber finger covers.
10. The operating height should be so that the operator does not tiptoe or bend when standing and working.
11. This machine should be equipped with a hand-type protection device or a press-bar protection device on the pressure frame.
12. The mechanical and electrical protection and clutch devices are subject to special inspections at least once every two working days. There are three types of inspections: appearance, interior and operation.
13. The protective cover temporarily opened due to the inspection shall be restored and tightened in time before it can be operated after the completion of each inspection work.
14. Before the commissioning, the protective device shall be accepted by the equipment management department and the safety technology department in accordance with this standard. After passing the acceptance, the test can be carried out.
15. Before the operation of the, the operator must check the equipment and safety devices without load. Production can only be carried out after the performance of each part is normal.
16. When there are abnormal conditions in the protective devices and other major components during operation that endanger personal safety, they should stop and report to the leader. No one is allowed to produce until the fault is eliminated.
17. It is strictly forbidden to grab and grab during operation. It is not allowed to refill or take paper from both sides of the device.
18. Personnel who repair, maintain and inspect Indentation line cutting machines should be familiar with the equipment and this standard and comply with the requirements of this standard.
